Komfovent

Centralised Heat recovery system KOMFOVENT Domekt R 150 F C8

€2.274,80 EUR
€2.274,80 EUR
Tax included. Shipping calculated at checkout.
Product type

Key specifications

Room size (approx.)up to 55 m²
InstallationCeiling-mounted
Airflowup to 150 m³/h
Heat exchangerRotary, condensing or enthalpy
Heat recoveryup to 82 %
ControlWall control panel, App / WiFi, Building automation (Modbus), Automatic (sensors)
SensorsTemperature, Humidity
Energy classA
Description

The Centralised Heat Recovery system KOMFOVENT Domekt R 150 F C8 is a residential ventilation unit with rotary heat exchanger designed for northern climate countries. Its smart C8 control system, max airflow of 150 m3/h, and condensing rotary heat exchanger make it a great choice for regulating temperature, humidity, and air flow in the indoor environment. The compact size and 5-th duct connection for bathroom extraction make it easy to install in 3 mounting positions: on the ceiling, on the wall, or on the floor. An A energy class rating ensures efficient energy usage.

  • A energy class
  • Residential ventilation unit with rotary heat exchanger for northern climate countries
  • Smart C8 control system
  • Compact size
  • Height only 280 mm

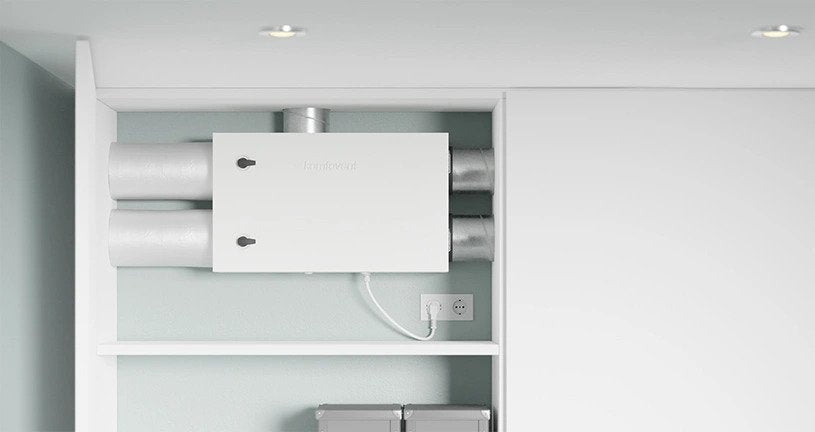

  • 3 mounting positions: On the ceiling, on the wall, on the floor
  • 5-th duct connection for bathroom extraction
  • (1st option) Condensing rotary heat exchanger effectively recovers the heat in low temperatures, maintains an optimal indoor microclimate, regenerates humidity in winter
  • (2nd option) Sorption-enthalpy rotary heat exchanger with zeolite coating effectively saves heat and cold, controls the humidity in the room while maintaining the optimal comfort level

Information from manufacturer`s website>

    Technical specifications
    Domekt R 150 F C8
    Maximal air flow
    150 m3/h
    Maximal air flow
    42 l/s
    Recommended room area per system
    55 m2
    Reference flow rate
    0,03 m3/s
    Reference pressure difference
    50 Pa

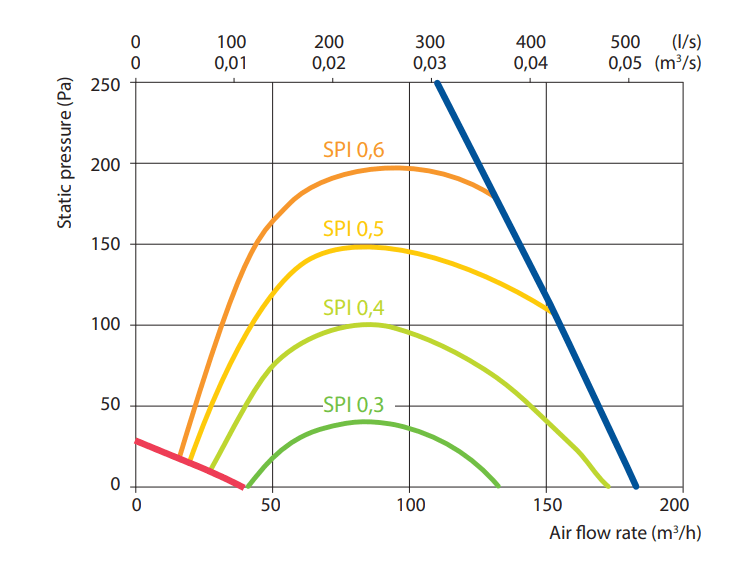

    SPI
    0,34 W/(m3/h)
    Thermal efficiency of heat recovery
    82 %
    Supply voltage
    1~230 V
    Electric power input of the fan drive at maximum flow rate
    41 W
    GENERAL FEATURES
    Heat exchanger types
    Condensing rotary / Sorption-enthalpy rotary
    Filters
    M5 (optional F7)
    Noise level (3m)
    32 dB(A)
    DIMENSIONS
    Diameter holes
    4xØ160; 1xØ125
    Width
    460 mm
    Height
    280 mm
    Length
    780 mm
    Weight
    29 kg
    Maintenance space
    780 mm
    A energy class
    European Quality Certificate CE.
    2-year warranty
